Best Practice references for Symantec Management Platform 7.0 (Article ID: 47816)
|
| |||||||||||||||||||||||||||||||||||||||||||||||||
01 July 2009
25 June 2009
Support for SQL 2005 SP3 for NS6
Notification Server 6.0 SP3 R10 now supports SQL 2005 SP3.
Currently Deployment Solution 6.9 SP1 MP1 (and earlier) and Notification Server 7.0 and 7.0 sp1 are not supported on SQL 2005 SP3.
Support for SQL 2005 SP3 is planned for a future release.
14 May 2009
How to allow Deployment Console access without granting access to SQL Server.
Is it possible to provide users with access the the Deployment Server Windows Console without granting access to SQL Server?
Answer
The Deployment Server Windows Console can be configured to use encrypted credentials to access SQL Server. These credentials will not be available to the windows user and can only be used by the console. This is the most secure way to provide access to the console.
1. If you have not already done so, create a SQL-only account on SQL Server.
2. Make that account a member of the DBO role of the Deployment (eXpress) Database.
3. On your Deployment Server, open the “Altiris Deployment Server” control panel applet.
a. Click “Options…”
b. Select the “Authentication” tab.
c. Enable the option to “Use SQL Server account authentication”
d. Type in the SQL-only account user name and password.
e. Click “OK” to close the Options dialog.
f. Click “OK” to close the applet.
4. On your Deployment Server, click Start > Run, type “regedit”, and click OK.
5. In the registry editor, go to HKEY_LOCAL_MACHINE\SOFTWARE\Altiris\Altiris eXpress\Options
6. Double-click on the registry value “SqlPassword”.
7. Copy the content of that registry value into the clipboard.
8. Open Notepad.
9. Enter the following into Notepad, replacing **USER** and **PASSWORD** with the user name of your SQL-only account and the value you copied into your clipboard.
Windows Registry Editor Version 5.00
[HKEY_LOCAL_MACHINE\SOFTWARE\Altiris\Altiris eXpress\Options]
"SqlUsername"="**USER**"
"SqlPassword"="**PASSWORD**"
"UseSql"=dword:00000001
10. Save the file as “DS_Auth.reg”
11. Import “DS_Auth.reg” onto every computer that the Deployment Windows Console is installed to.
04 May 2009
Windows 7 Release Candidate Announcement
On April 30th, the RC became available to MSDN subscribers and TechNet Plus subscribers.
On Tuesday, May 5 (PST), the RC will be available to everyone via our Customer Preview Program. As with the Beta, the Windows 7 RC Customer Preview Program is a broad public program that offers the RC free to anyone who wants to download it. It will be available at least through June 30, 2009, with no limits on the number of downloads or product keys available.
So you don’t need rush to make sure you get your copy. When you’re ready to download the RC, it’ll be waiting for you.
Notification Server 6.0 SP3 R10 Release Notes
Rollup 10 (R10) for Notification Server 6.0 is a rollup of fixes to the core product since the release of Service Pack 3. It includes R1 (KB22690), R2 (KB23784), R3 (KB25133), R4 (KB27859), R5 (KB31946), R6 (KB34317), R7 (KB35803), R8 (KB39159), and R9 (KB39160)
Fixes and enhancements:
- Software Delivery Tasks that are set to run only at the scheduled time do not run after a deferral window
- Altiris Agent Support for Vista SP2
- Support for SQL 2005 SP3
29 April 2009
Is Internet Explorer 8.0 supported with Notification Server?
Internet Explorer 8.0 is not supported at this time with NS 6 or 7.
However, as IE 8 offers an IE 7 compatibility mode, you may be able to use IE 8 with Notification Server 6.0 by putting the hostname of your NS into the Intranet Sites Security Zone.
Sites in the Intranet Zone are rendered in IE 7 compatibility view by default in IE 8. You can also click the compatibility view icon, located to the right of the address bar, to force IE 8 to render a given site in IE 7 mode.
28 April 2009
How can I remove .NET 3.5 SP1 and / or .NET 2.0 SP2 and reinstall .NET 3.5?
Please first make a complete backup of the Notification Server before proceeding with the below steps.
If you have only installed .NET 3.5 and .NET 2.0 SP2, use the following steps:
- Uninstall .NET 2.0 SP2 from Add or Remove Programs
If you have installed .NET 3.5 SP1 (which includes .NET 2.0 SP2 and .NET 3.0 SP2), use the following steps:
- Uninstall .NET 3.5 SP1 from Add or Remove Programs
- Uninstall .NET 3.0 SP2
- Uninstall .NET 2.0 SP2
- Reinstall .NET 3.5
After you have reinstalled .NET 3.5 (which includes .NET 2.0 SP1 and .NET 3.0 SP1) please make sure that the Default Web Site in IIS is set to use .NET 2.0.
After the re-installation IIS will prohibit .NET 2.0 usage by default and will result in the following errors:
Log File Name: a.log
Priority: 2
Date: 4/7/2009 11:52:19 AM
Tick Count: 1868671
Host Name: *********
Process: AtrsHost (1528)
Thread ID: 4
Module: AtrsHost.exe
Source: Altiris.TaskManagement.ClientTask.*
Description: System.Net.WebException: The remote server returned an error: (404) Not Found.
at System.Net.HttpWebRequest.GetResponse()
at Altiris.ClientTask.Server.ClientTaskServer.RegisterTaskServer(TaskServerGroupGuid serverGuid, Guid serverSecret)
Log File Name: Agent.log
Priority: 1
Date: 4/7/2009 4:30:02 PM
Tick Count: 6996453
Host Name: ********
Process: aexnsagent.exe (1152)
Thread ID: 1180
Module: aexnsagent.exe
Source: ConfigServer
Description: RequestPolicies failed: HTTP error: 404 Not Found (-2147209951)
Allow .NET 2.0 usage in the IIS Web Extensions and reload the console.
22 April 2009
Which thin client modles from HP/Neoware qualify as a free managed node?
HP models starting with the characters t5, gt7, vc4, and the 2533t and 6720t models qualify as a free managed node and do not require any Deployment Server licensing.
Neoware thin clients are not support as free nodes. There are some legacy models of Neoware thin clients that DS will recognize as free.
16 April 2009
Dell Client Manager Table
Hope this helps
| Component | DMC | DCM Standard | DCM Plus | DCM Suite |
| Altiris Agent Linux, Unix and Mac | X | X | X | |
| Altiris Inventory for Network Devices | X | X | ||
| Altiris Monitor Solution for Servers | X | |||
| Altiris Patch Management for Dell Servers | X | |||
| Symantec Management Platform 7 | X | |||
| Altiris Event Console | X | X | X | X |
| Altiris Pluggable Protocol Architecture | X | X | X | X |
| Altiris Network Discovery | X | X | X | X |
| Altiris Real Time Console Infrastructure | X | X | X | |
| Out Of Band Management | X | X | X | |
| Power Scheme task | X | X | X | |
| Altiris Software Management | X | X | ||
| Altiris Inventory | X | X | ||
| Altiris Deployment Solution 7 | X | X | ||
| Altiris Patch Management For Linux | X | |||
| Altiris Patch Management For Windows | X | |||
| PC AnyWhere | X | |||
| Altiris Real Time System Manager | X |
15 April 2009
Nice juice (now Connect) Articles
Migrating from Inventory Solution 6.x to 7.0
http://www.symantec.com/connect/articles/migrating-inventory-solution-6x-70
Best Practices for Configuring an Intel vPro Capable System within Out of Band Management 7.0
http://www.symantec.com/connect/articles/best-practices-configuring-intel-vpro-capable-system-within-out-band-management-70
Running Inventory to Capture All Information, Including Details File Inventory, Using a Task Server Job
http://www.symantec.com/connect/articles/running-inventory-capture-all-information-including-details-file-inventory-using-task-serve
Remote Configuration Certificate Best Practices in Out of Band Management 7 for Intel vPro Systems
http://www.symantec.com/connect/articles/remote-configuration-certificate-best-practices-out-band-management-7-intel-vpro-systems
01 April 2009
DS 6.9 SP1 and SQL Express 2005SP2
To be able to install DS6.9SP1 you need a SQL Server.
For testing, demo only we can use the SQL Express edition. I used SQL Express 2005SP2.
Just installed out of the box with SP2.

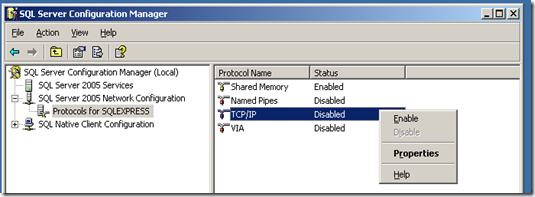

Before you start installing the DS you need to enable the TCP IP protocol using the Server Configuration Manager

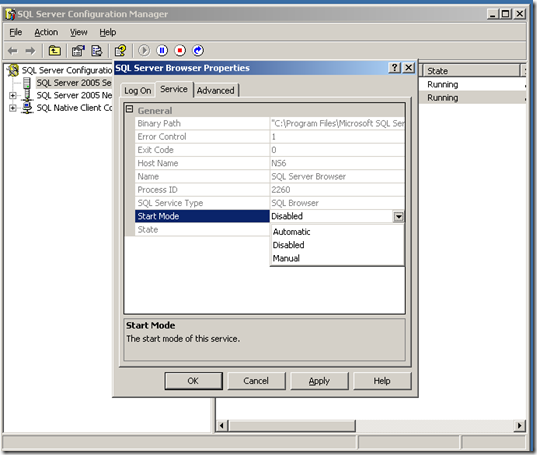

Second you need to enable the SQL Browser service

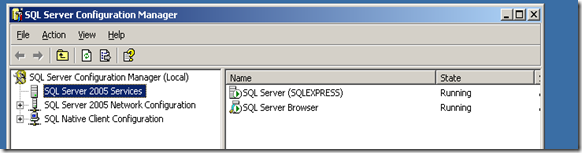

Then you need to start the SQL Browser Service
Either reboot the server or restart the SQL Server Service. See above, just right click and restart.
Now you are able the run the DS Setup
First steps with DS7.0
As soon as you install the Deployment Agent you also install an automation partition on the C: drive. (C:\Boot)
Client actions (prepare)
Create a directory called Sysprep on the source machine. (c:\sysprep) copy the Support\tools\deploy.cab file from your WindowsXPinstallation disk or service pack to the
c:\sysprep\deploy.cab file on the source computer.
Using VMWare please use the E1000 Nic see KB40812 and use IDE not SCSI (using SCSI the C:\ will not be detected)
Notification server actions
Before starting to create the capture Task you need to enter your license key for windows under Settings, Deployment and Migration, OS Licenses.
No create the task to get the image.
31 March 2009
KB's including the Outlook Junk Mail for 2003 and 2007 will now be added to the PMImport
Beginning April 2009 the Outlook Junk email kb's for Office 2003 and 2007 will be included in the 4th week PMImports.
This is for Patch Management Solution for Windows 6.2 SP1
24 March 2009
PXE will not bind to port 4011 on a Windows 2008 server that is running the Microsoft DHCP server service
Problem/Symptoms
PXE will not bind to port 4011 on a Windows 2008 server that is running the Microsoft DHCP server service
Steps to reproduce:
- Install Windows 2008 Server and install the DHCP server service.
- Install Deployment Solution 6.9 SP1.
- PXE boot a client. PXE will not work.
Environment
Windows 2008 Server with DHCP server service installed and running
Deployment Solution 6.9 build 355
Resolution
Symantec is investigating this issue and will update this article when there is more information.
To work around this issue, change the PXE configuration from the default "auto-detect Microsoft DHCP" to "3rd party DHCP" and configure DHCP option 60 to "PXEClient".
23 March 2009
20 March 2009
Updates on NS7
There used to be a notification and a process that checked every day for updates on the suite.
In NS7 this is no longer the case. You should run the SIM and do a check update.
So to start:
I installed my NS7 on the 10th of March 20, 2009 and there is a :
1) Critical Update on the NS Language pack
2) HF1 on Network Discovery
3) HF1 on Inventory for Network Devices
4) HF1 on Symantec Management Platform SP1
5) SP1 on Power Scheme Task
6) HF1 on Pluggable Protocol Architecture SP1
New items:
Data Loss prevention Integration Component
Fujitsu Siemens Deskview (several)
ASDK 2.0
12 March 2009
ManageFusion 09 Keynote
Want to see the keynote?
Day 1
Day 2
(Virtual Workspace and Workspace Remote)
(Some workflow integration)
(Endpoint Protection and Mobile Security)
28 February 2009
Deployment Solution 6.9 SP1 will not install into NS 6.0 Console
Installation of the Deployment Solution tab in the NS 6.0 Console never completes.
In some instances the Event log will have the following in the Application Log;
Error 1718. File FileName was rejected by digital signature policy.
Environment
Deployment Solution 6.9 SP1, (6.9.355 & 6.9.365)
Notification Server 6.0 Console
Windows Server 2003 (all versions)
Cause
Known issue in Windows Server 2003 (all versions) covered in Microsoft KnowledgeBase article #925336.
This problem occurs if the Windows Installer process has insufficient contiguous virtual memory to verify that the .msi package or the .msp package is correctly signed.
Resolution
Hotfix is available from Microsoft at:
26 February 2009
25 February 2009
About installing the Altiris Agent
For information and a listing of the available installation parameters for the Altiris Agent Installatio Program, see Altiris Knowledgebase article 27958 or click here.
For information on the Login Script installation process, see Altiris Knowledgebase article 28226 or click here.
For information on the Active Directory Policies installation process, see Altiris Knowledgebase article
27956 or click here.
20 February 2009
Detailed Agent logging
Whenever you want more details to be logged to the NS agent log file you can add a registry key at the following location :
HKEY_LOCAL_MACHINE\SOFTWARE\Altiris\Altiris Agent\Event Logging\LogFile
Add Severity as DWORD
The following values are used:
Error = 1, Warning = 2, Informational = 4, Trace = 8, Verbose = 16
So if you enable all the value is 31, if you enable Err, War, Inf then the value is 7
Maxfiles and MaxSize as DWORD will limit size and files
Hotfix for Sequential Tasks
A hotfix has been developed and tested to resolve this issue. The hotfix can be found here. The hotfix upgrades the Task Synchronization Agent and updates the collection assigned to the Task Synchronization Agent Upgrade Task to incorporate the version change.
NOTE! If you've previously installed a version of the hot fix prior to 2/18/2009 you will need to uninstall the previous version of the hot fix from Add/Remove Programs before reapplying with this newer version.
To apply the hotfix, simply run the attached EXE on the Notification Server (located in the right-hand pane). Note that processing will be paused during the application of the hotfix. It is recommended to either log directly on the Notification Server or use the /console switch if using Remote Desktop.
To finish the fix, use the Task Synchronization Agent Upgrade policy to roll out the new version of the Task Synchronization Agent.
- In the Altiris Console, browse to View > Solutions > Software Delivery > browse through Configuration > Task Synchronization Agent.
- Right-click on the Task Synchronization Agent Upgrade task and choose Enable (if not so already).
- If an upgrade has occurred previously, please set a schedule to roll out the new Agent as the option for Run as Soon as the Computer is Notified only ever runs once, regardless of changes in version.

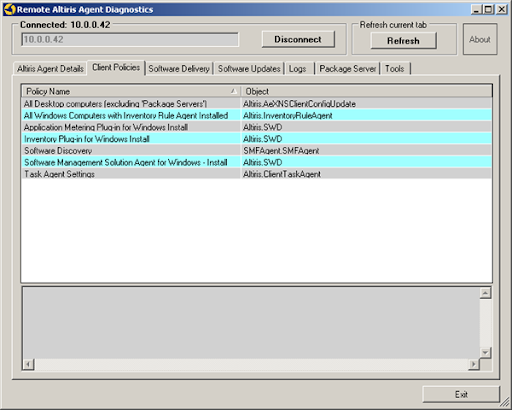

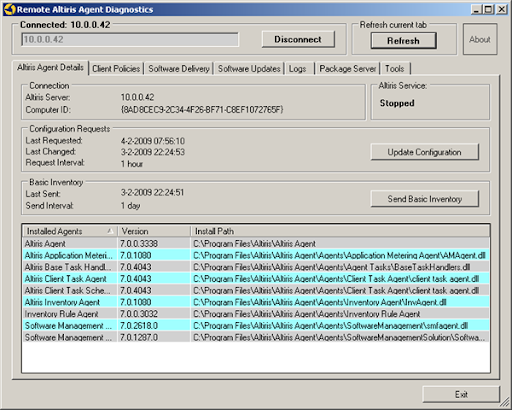

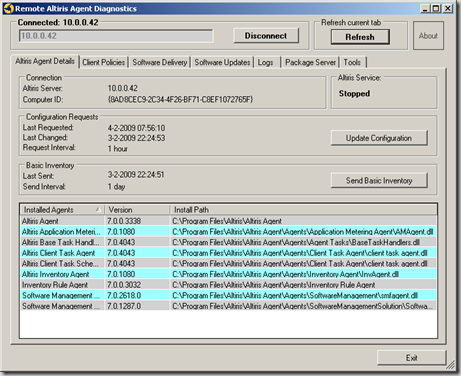

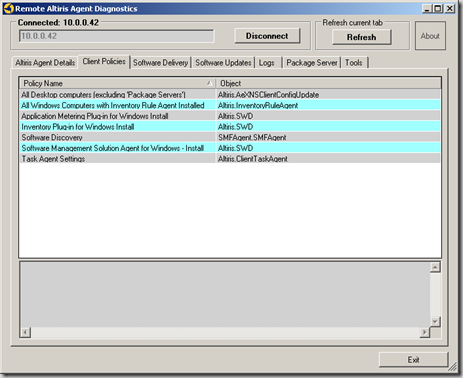

Remote Altiris Agent Diagnostics for NS7
This new tool (see below) is now supporting the NS7 Agent.
GREAT tool, a must have as an Altiris Admin
10 February 2009
Bandwidth throttling and speed tests, how does it work?
- Bandwidth throttling configuration
- How the throttling process work
- Speed testing parameters
- Registry keys
- Additional information
Bandwidth Throttling configuration:
Bandwidth throttling is configured on the NS Web admin console at 'Configuration > Altiris Agent > Altiris Agent Configuration' each of the four agent tasks, on the General tab under the Bandwidth/Throttling settings section.
Bandwidth throttling options:
- Never throttle.
- Enable throttling when connection speed is below <dropdown box>:
- 500 bytes/sec
- 1 KB/sec
- 2 KB/sec
- 4 KB/sec
- 10 KB/sec
- 20 KB/sec
- 50 KB/sec (default)
- 100 KB/sec
- 256 KB/sec
- 512 KB/sec
- 1 MB/sec
- Throttle regardless of connection speed.
- Use the server’s time for throttling settings (none configured by default).
Once bandwidth throttling has been configured, and the throttling configurations have been passed to the Altiris Agent machines, the Altiris Agent uses ICMP (ping) packets to perform the network connection speed tests. This is detailed below in the section Speed Testing Parameters. The returned speed test value is cached for a period of 6 hours.
When there is a scheduled package download task, the Altiris Agent either retrieves the cached connection speed value or it will initiate a new network speed test, and the results will be cached for 6 hours. Once the 6-hour cache expires, the Altiris Agent will request another speed test profile once an advertisement execution or package download begins (see Speed Testing Triggers and Speed Testing Operations below).
Throttling Rules:
When the Altiris Agent is asked to throttle, there are two throttling rules that can be configured:
- Relative throttling—This is a user defined percentage of available bandwidth, and it is measure in 0–100 percent.
- Absolute throttling—This is a user defined maximum allowed throughput when throttling is enabled; it is measured in bytes per second.
How the throttling process works:
The Altiris Agent:
- Sets wait times and buffer sizes that most closely meet the target download speed of the configured relative or absolute throttle rule before starting the package download.
- Requests a segment of data from the source.
- Receives the data and then waits a specified period of time.
- Monitors the download and adjusts to meet the configured throughput.
- Requires no additional speed testing.
Speed Testing Triggers:
When the Altiris Agent is instructed to perform a speed test by its configuration policy there are four triggers that can initiate the speed test:
- Each Software Delivery task can have a 'Download and run…' option (Advanced tab and 'Download and Execute Options') which determines the location of the file for execution, whether from a server or locally, depending on the available speed.
- In the Altiris Agent configuration there is an option Default minimum connection speed to run SWD Packages to test minimum throughput before execution.
- In the Altiris Agent configuration there is the same Download and run… option as in the Software Delivery Task, but when applied via the Altiris Agent configuration, it is a global setting which then applies to all tasks.
- In the Altiris Agent configuration there is download throttling when the download occurs. This method has two modes of operation: Relative throttling which is a percent of available bandwidth, and Absolute throttling which is simply a value for the throughput allowed.
Speed test operations:
Speed Tests are Directed Against Servers in the Following Manner:
- Items 1, 3, and 4 above in Speed Testing Triggers (only with Relative throttling) are tests against the download location.
- Item 2 above in Speed Testing Triggers is against the Notification Server, or any Item where the Altiris Agent cannot determine another server to test against will be evaluated against the Notification Server.
- Item 4 (with Absolute throttling) does not need a speed test.
Note! Speed testing does not mean packets go on the wire every time one of these decision points is reached. Review the speed test details below under Speed Testing Parameters. Whether it is for a package download or an advertisement execution, the speed testing process is the same.
Speed testing begins with the FQDN name for the server being targeted based on the codebase and the speed is discovered and set; the NetBIOS name is not tested but it set to the same speed. If the FQDN test fails then the NetBIOS name is tested, and the speed is discovered and set.
Bandwidth Throttling when ICMP is turned off:
There are several throttle settings and parameters that need to be understood when ICMP traffic is disabled on the network. Activation of throttling by the Altiris Agent is based on the following options:
- Throttle regardless of connection speed, or
- Enable throttling when connection speed is below <dropdown box>.
If ICMP traffic is disabled on the network, the option Throttle regardless of connection speed should be selected. If the option Enable throttling when connection speed is below… is selected when ICMP traffic has been disabled, by default throttling is set to 1 KB/sec because the connection speed cannot be verified.
So, threshold settings that are 1 KB/sec or above are always throttled, and the setting of 500 bytes/sec is never throttled.
The configurable values for throttling threshold are:
- 500 bytes/sec
- 1 KB/sec
- 2 KB/sec
- 4 KB/sec
- 10 KB/sec
- 20 KB/sec
- 50 KB/sec (default)
- 100 KB/sec
- 256 KB/sec
- 512 KB/sec
- 1 MB/sec
Once the throttling options are selected then the throttling limits come into effect. Again, these limits are:
- Relative throttling — This is a user defined percentage of available bandwidth, and it is measure in 0–100 percent.
- Absolute throttling — This is a user defined maximum allowed throughput when throttling is enabled; it is measured in bytes per second.
When ICMP traffic is disabled on the network there is no need to initiate speed testing and Absolute throttling is the better choice. The bandwidth limit is already known and the Altiris Agent will throttle to that limit. If Relative throttling is selected, it will still act as an absolute limit as defaults to the option of 1 KB/sec.
Since network throughput is so critical, different Altiris Agent collections should be created based on network throughput. Altiris Agent machines can then be customized based on customized connectivity configurations.
Speed Testing Parameters:
Speed testing is a result of the Altiris Agent pinging the FQDN name for a server being targeted based on the defined codebase, and the speed is discovered and cached; the NetBIOS name is not tested but it set to the same speed. If the FQDN test fails then the NetBIOS name is tested, and the speed is discovered and set.
If the codebase request is to a server that has not been profiled for a connection speed before then a speed test is initiated.
Packets used: Five 1-byte packets and then thirty 400-byte packets. (Note: Older operating systems will only use five 400-byte packets.)
Registry keys:
HKLM\SOFTWARE\Altiris\Communications\MaxServersToCheck (default 6, valid range is 1–100).</I">
Description: Maximum numbers of servers to check
Values: If over 100 or under 0 then is set to 100; a value of 0 is set to 6
HKLM\SOFTWARE\Altiris\Communications\ IP Expiry (mins) (default 360, valid range is 1–10,080)</I">
Description: Number of minutes before connectivity to a Host is retested
Values: If over 10,080 or under 0 then is set to10080; a value of 0 is set to 1.
HKLM\SOFTWARE\Altiris\Communications\SPEED Expiry(mins) (default 360)
Additional information
See AKB #39368 for additional information on Speed Testing.
NS7 RC2 Getting started
To start with the RC2 please download the Symantec Instalation Manager from the beta portal and the product Listing that goes with the RC2. The sources then will be downloaded as required.
When you start playing with the new RC2 downloaded from the BETA site then don't forget to enable the "Altiris Agent for Windows - Upgrade" policy to get started, otherwise you are working with an old agent on the NS SERVER only, the agents get deployed ok. (This is because the agent is installed during the base install during the setup)
If you have installed Inventory Solution with Application Metering Solution then the Inventory Solution Pug in is enabled by default. (this is new). The "Application Metering Plug-in for Windows Install" if selected in the Enable Management Features screen during install is NOT enabled by default.
Get the Software Discovery policy enabled on a suitable time is working on VMWare (mine is turned off during night).. The policy runs on Sun and Wed at 02H00 AM...This policy is responsable to populate the Add/Remove Program Table that is used in the Installed software Report.
A full inventory is enabled by default and will run at 18H00 every Monday
(Updated) Remote Altiris Agent Diagnostics
“Remote Altiris Agent Diagnostics” allows you to connect into a remotely Altiris Agent managed machine to view all the configurations and troubleshoot without having to RDP into the machine to look at the Agent UI.
Many times a user is already logged onto the machine and so you cannot run any Altiris processes to move the agent along or troubleshoot. This application allows you to remotely run Configuration Requests, send Basic Inventory, Run a SWD program, stop and start the Altiris service, delete the Patch IAD file, view NSI files, delete Inventory files and randomization registry keys (a way to force cleanbeforerun and run now), change Logging settings, as well as run a command line remotely so you can run things like “AexPatchUtil.exe /Xa” to start the patch cycle.
You can see all the settings that the Agent UI does locally, except remotely – SWD, Patch, Agent Details, etc. It also has a Log Viewer and you can filter the log entries.
Download the attached application here. Just enter the DNS name of the remote machine and hit enter.
You need to run the executable locally on a x86 Windows OS, use an admin account on the remote client (can use 'Run As'), and the remote registry service needs to be started on host and remote machine. In order to use the Update Config Request, Send Basic Inventory, and Run Program you need the NS Agent installed locally.
Note: This is tool is not supported by Altiris Support. If you have problems or comments please use this KB to send feedback.
Updates:
Ver. 1.0.14 - Add the ability to except command line. Now you can run "Remote Altiris Agent Diagnostics.exe" ComputerName for this utility to automatically launch and connect to the ComputerName. Usage can be to add right-click menu to the NS Console.
Ver. 1.0.15 - Added "Resend Package Status" and "Refresh Packages" functionality to the Tools menu for Package Servers.
Ver. 1.0.15 - Changed "Remote Execution" to pull options from an INI file for easy distribution and repetition. Example INI in attached zip file.
Ver. 1.0.16 - Added "Reboot Required" and "Patch Cycle In Progress" date to the Software Uupdates tab.
Ver. 1.0.17 - Software Update fixes
Ver. 1.0.18 - Added Task Manager functionality - list and end remote processes
Ver. 1.0.19 - Added Package Server tab
Ver. 1.0.20 - Fix bug in SWD "Package ID" value and Task Manager "Memory" column sort fix
Ver. 1.1.1 - Added ability to connect to remote machine managed by the NS 7 Altiris Agent and not just NS 6 Agent.
Ver. 1.1.2 - Fix bug in End Process function on Task Manager
Ver. 1.1.3 - Added ability to Enable or Disable Bandwidth throttling on Tools tab
- Added ability to Hide Superseded Software Updates
- Added ability to double-click Source Location path to open in browser or explorer on Package Server and SWD tabs
- Added Download History and Source Location info on Package Server tab
Ver. 1.1.4 - Decreased the Package Server tab load time
Ver. 1.1.5 - Added "Hide Disabled" checkbox to Package Server tab
Please add yourself as a subscriber so you receive notifications when this tool has been updated.
Here are some screenshots:
06 February 2009
How to prevent duplicate ResourceGuids from being forwarded to Reporting Notification Servers?
You have implemented our Duplicate Guid Diagnostic toolset on your Forwarding Notification Servers, however, you have noticed that your Reporting NS's are suffering from this scenario too. How can this be prevented?
Answer
In order to prevent duplicate ResourceGuids from being forwarded to a Reporting NS, you should exclude our "Possible Duplicate Guids" collections from your Inventory Forwarding collection.
If a Reporting NS already has a duplicate ResourceGuid issue, then make sure you delete them after implementing the above step, so that only unique ResourceGuids will exist on a Reporting NS.
Shared Guid Diagnostics Guide (aka Duplicate Guid Kit)
What is a shared agent guid, and how can I correct the problem?
Answer
Definition
A Shared Altiris Agent Guid is a configuration problem that causes mismatched inventory data, and prevents accurate management and event-message storage of managed computers by the Altiris Notification Server. The Altiris Agent Guid is the primary mechanism by which the Altiris Notification Server uniquely identifies each resource record in the NS database. In this situation, we are concerned with computer resource records. There are several potential causes of shared guids. They all originate from circumvention of the normal agent deployment process, or external changes to the agent's configuration. The end result is that two or more managed computers each claim to be the sole owner of the Agent Guid (which is supposed to be globally unique).
Known causes
OS Imaging: By default, the Notification Server will generate a new Guid upon the first request from a brand new Altiris Agent. The Altiris Agent then stores its assigned Guid in the registry for Windows, and on the file-system for the Linux, Unix and Macintosh platforms. Shared Guids can be caused by imaging a workstation that already has an Altiris Agent installed. Each restored copy of the workstation will have the same assigned Guid. This issue exists in all imaging solutions, with the exception of Deployment Server (DS) version 6.5 or better. The best solution is to schedule the Altiris Agent to install immediately after restoring an image (This can be done as a DS job). An alternate solution is to always remember to delete the guid from the workstation prior to imaging (error prone).
Software Packaging: This cause is less likely to occur, but simple software repackaging tools will include the Altiris Agent's registry or file location of the guid as part of the software package. Activity by the Altiris Agent can fool the packaging tool into thinking that the Guid belongs to the package. Deploying the bad software package overwrites the good guid with the one from the capture station. To avoid this problem, don't install the Altiris Agent on the workstation used for snapshoting the original software installation job.
Resolution
The purpose of this document is to demonstrate how to use the Notification Server’s shared GUID diagnostics kit to successfully identify and remove computers within the Notification Server database. The attached MS Word document contains screenshots for additional clarity (it is now considered out-of-date, and is merely provided for historical reference).
Installation
You can install the diagnostics kit by following the steps below. This utility contains several collections, a report, a package to remove the shared guids, and platform specific tasks. These items are all created in a Shared Guid Diagnostics v6.04 folder that is created by the import.
Note: Altiris NS Agent version 1508 or later is required for this to work.
- Download the xml file attached to this article and save it to a location on the Notification Server
- Find a location to install this utility. For this example we will create a folder called “Diagnostics” within the Tasks folder.
- Highlight the folder that you created. Right-click and choose Import.
- You will be prompted to choose the file to import. Choose the Shared Guid Diagnostics v6.05.xml file.
- Once the file has been imported into the Notification Server database, you should see the following structure:
- Enable each applicable Reset Guid Task. It's only neccessary to enable the task for platforms that exist in your environment.
Possible Duplicate Guids
- These collections will query the Notification Server database for all computers that have reported a change in their GUID in the past seven days. Computers in this collection are used by the associated task to reset the Guid on the client computers.
Note: After fixing shared GUIDs in the database, there is a possibility that some computers will still show up here. This collection is checking to see if the computer record has been changed in the last seven days, not if it has been fixed. To retrieve an accurate report, use the GUIDs Shared between 2 or more computers report or view the Machines that have run the Reset Guid Task collection.
Machines that have run the Reset Guid Task.
- This collection will display any computers that have run a reset guid task, giving you a report of the machines that have completed the fix. Keep in mind that this report can not be 100% accurate due to the problem that is being addressed by the reset guid tasks.
GUIDs Shared between 2 or more computers.
- Analyzes computers that have been sharing the same GUID, this is recognized when frequent name changes are occuring on a specific NS computer record. Once the duplicate GUID has been cleaned up, you will see the results in this report. This report doesn't distinguish by platform, and will also include un-managed computer records. By design, collections can not include unmanaged computers.
Reset Guid Tasks
- These packages are responsible for running the appropriate task on the computers that are sharing the guid. On the Windows platform, it will use a built-in utility to strip out the Altiris Agent's guid from the registry. There are multiple places that the guid can be stored, depending upon if the DS Aclient is also present, and or older versions of the Altiris Agent have ever been used.
- For the Windows platform, the following command is used: AeXAgentUtil.exe /resetguid
- For Unix, Linux, and Macintosh computers, the file containing the guid is deleted, and the Altiris Agent is restarted as a background process. The agent restart is neccessary to flush the GUID from memory.
- A new Guid is created by the Notification Server after the Altiris Agent sends the computer name and domain to the Notification Server. For each shared guid, one of the computers will retain ownership of the computer resource record, the remaining computers will be assigned new guids (and thus new NS computer resource records).
Permissions
By default, when this package in imported, the owner of the folder and items will be null. The administrative role will have access to this utility, but if permissions are to be set, you should set the ownership by doing the following:
- Right-click on the main folder
- Choose Properties
- Choose the Security Tab
- Choose the Take Ownership button.
Uninstall
To completely remove the Duplicate Diagnostic utility from your system, you should follow the steps below. Delete the following objects through the NS console (right-click > Delete).
1. Reset Guid tasks (3).
2. Possible Shared Guid collections (3)
3. Machines that have run the Reset Guid task collection
4. Guids shared between 2 or more computers report
5. The Reset Guid Agent Package. (You must first delete each "program" by clicking the delete button on the Programs tab of the package).
Version Notes
- 6.04 -> 6.05: Updated the accuracy of the report to avoid false positives to match the upgraded collections. Now both the report and the collections must have at least 3 name/domain changes in 7 days before being considering suspect. This facilities the standard practice of changing the computer name and attaching to a domain.
Corrected the software advertisement guids used in the "Computers that have run the Reset Guid task".
Troubleshooting
Problem: After running this tool, computers have been removed from my static collections
Answer: The attached report "Computers with Duplicate GUIDs and their old collection memberships.xml" can be used to help identify what collections were affected. Altiris Administrators will have to add the computers back to the collections they were removed from. Thank you to Altiris customer Vince Fanelli for creating this report.
Problem: My collection is not updating with any computers, and I know there are shared GUIDs in the database.
Answer: By default, the Collection will update on the automatic schedule for collections. You can change the time the update will happen by changing the “Automatic Collection Updating”.
Problem: My collection still shows a list of computers after the scheduled task has had time to run. Why are there still computers in the Possible Duplicate GUIDs collection?
Answer: This collection will report a list of computers that have changed their GUIDs in the last month. If the task has run successfully on these computers, then these computers should not update the GUID again. You will have to wait for a month before the computers will be removed from this collection. To accurately determine if there are any remaining computers that are reporting a duplicate, the report GUIDs shared between 2 or more computers should be used.
Problem:
Answer: No. This report will check the database for computers that have shared this GUID at some point in time (default setting is seven days). You will need to watch the results of this report to ensure there no new activity. You will see machines show up in this report if they report back to the Notification server with a GUID used by another computer. The computer will then take over the GUID and the next time the other computer checks in, it will repeat the process.
Links :
MS Word Doc: https://kb.altiris.com/utility/getfile.asp?rid=3577&aid=3848
Report : https://kb.altiris.com/utility/getfile.asp?rid=3589&aid=3848
Report : https://kb.altiris.com/utility/getfile.asp?rid=4914&aid=3848
03 February 2009
Scripted OS install stops at a blinking cursor / blank screen
After assigning a scripted OS install job to a machine the client runs the prepare production partition part of the task then reboots to a blink cursor / blank screen
Cause
There is a reboot required after setting up the partition for the scripted install task. The machine is supposed to reboot back in to an automated environment and continue to copy down the files and start the install. When it can not boot back in to a automation environment it boot to the empty production partition which has no boot information leaving the user viewing a blinking cursor / blank screen
Resolution
Find out why the machine did not boot back to an automation environment. This could be cause by any of the following.
- PXE/Network boot was not set as the top priority in the BIOS (only applicable if using pxe)
- The client connected to a rogue PXE server and was instruction to boot to production
- The automation media (boot CD/USB) was removed from the machine after rebooting
18 January 2009
NS7: Inventory Installed Software Report
As I was playing a bit with NS7 (Or should I say Symantec Management Console) and Inventory I found a new report in the right click menu action of a resource called Installed Software on on the left side of the Resoucemanager.
First thing I did was deploying the Inventory Plug-in and I launched a task to get the inventory. When I then clicked the resource and opened the report it was empty (No result).
So i analyzed the report and it uses the Add/Remove Program information. But...other then Inventory Solution 6.X this information is now collected by the Software Management Framework Agent. This plug in is part of the core Agent.
Only...Software Discovery will run at 02H00...and then my VMWare is/was not running...So for those who are in a hurry on getting some information you need to change the Software Discovery Task schedule to run when you want.
After that this report is displaying some results.
17 January 2009
Hardware Independent Imaging with DeployAnywhere
On the juice site I found this article on using DeployAnywhere
Some other (and same) information comes from the KB articles
How to use DeployAnywhere in Deployment Solution to replace the HAL, NIC driver, and mass storage drivers
DeployAnywhere works by deleting the existing HAL.dll in a Windows* operating system and deploys a NIC driver and mass storage driver to rebuild the HAL.dll on the first reboot.
Requirements
- Deployment Solution 6.9 SP1
- Any image created with RapiDeploy, Ghost, or ImageX.
- Windows PE Automation Enviroment
Steps to complete
- Create an image with RapiDeploy, Ghost, or ImageX.
- Create a Distribute Image task and check Use DeployAnywhere hardware independent imaging in the Configuration section of the task.
- Check Prepare Using Sysprep.
- Assign the Image Task with DeployAnywhere settings.
How do I test if the driver database has drivers for a computer?
- Boot to Windows PE* 2.1 network enviroment.
- Run these commands:
cd F:\ghost
ghDplyAw32.exe /target=c:\windows /ddb=F:\DriversDB /eval - This will return a failure or success. (If a failure is returned, it will say what driver is needed.)
Important:
The previous task only works if the SmeUtil.sys driver is in the
\Windows\System32\Drivers folder of WinPE. This driver is found in the Ghost folder in your Deployment Share. It can be added to the WinPE automation during the creation or editing process by right-clicking the Drivers folder and selecting Add File.
As an alternative, the SmeUtil.sys driver can be copied by adding the following command to your run script task:
Copy %ALTIRIS_SHARE%\Ghost\SmeUtil.sys %SystemRoot%\
System32\Drivers
NIC and mass storage drivers need to be added to the DeployAnywhere driver database.
- Open the Deployment Console.
- Click Tools, and then DeployAnywhere Driver Managment.
- Click on network for NIC drivers and mass storage tab for mass storage drivers, and click Add New Driver.
- In the New Window Driver window browse to your drivers. In the friendly name box, type a name for the driver you are adding. Check the OS that this driver will be applicable for.
To enable Deploy Anywhere logging with Deployment Server do the following:
- Open the applicable Distribute Disk Image job.
- Select 'Use DeployAnywhere hardware independent imaging'. The 'Advanced' button will become active. (not grey)
- Click on the 'Advanced' button. In the 'Additional Parameters' box add the '/capturesupportinfo=<path on DS to store the logs>' switch. E.g. /target=c:\windows /ddb=\driversdb /capturesupportinfo=f:\temp.
When Deploy Anywhere is ran it will output all logs to the directory specified.
11 January 2009
What is the best way to change the IP address of the DS server?
You should check and change the IP address of the DS server in the following places:
- Change your aclient settings over to point to the new IP address (or the server's hostname if possible)
- Stop the Altiris eXpress Server, PXE Config Helper and PXE Manager services
- Change the IP information within these files in the eXpress share:
- .\default.cfg
- .\pxe\pxe.ini
- .\pxe\pxemanager.ini
- .\pxe\rpc.ini
- Start the Altiris eXpress Server, PXE Manager and PXE Config Helper services (Note the order of start up)
- Change each PXE / Bootworks configuration to point to the new IP address (lmhosts file)
04 January 2009
Configuring Package Location on your Package Server
This article shows you how to:
- Change the package location
- Secure the package location
Changing the Package Location
It can be beneficial to select a different location on your Package Servers to save disk space. When the storage location for a package is changed to a custom location, the Package Server:
- Moves the files from the old location to the new location
- Deletes the old location
- Checks what is to be downloaded
When files are removed from a package, the Package Server deletes them when it refreshes the package. However, removed files are not deleted if the package has a custom location as it cannot determine if the files are part of the package. Example: several packages with the same destination or the custom location contains user files.
Also, as the Package Server is installed on the same drive as the Altiris Agent you can select a different drive when installing the Agent.
This option is on a per package basis. What that means is that each existing package and all new packages would be configured this way. There currently is not a way to globally change the default location of the packages stored on the package server. All packages will continue to have the default location of "%ProgramFiles%\Altiris\Altiris Agent\Package Delivery". The only way to change this location is by removing the Altiris Agent completely, implying the removal of all subagents, then reinstall the agent on the desired drive.
Changing the Package Location
- In the Altiris Console, click the Configuration tab.
-
Example:
To change the Altiris Agent package location, in the left pane select Altiris Agent > Altiris Agent Rollout > Altiris Agent Package. In the right pane, click the Package Servers tab, select Package Destination Location on Package Servers and enter a location in the field provided. - In the location field, specify a directory path or use system environment variables found on the Package Server. The following are valid paths:
c:\share\<packagefoldername>
f:\<packagefoldername>
\\%COMPUTERNAME%\share\<packagefoldername>
\\%COMPUTERNAME%\eXpress\<packagefoldername>
/var/packages/<packagefoldername>
Warning: Ensure you specify a subfolder that is unique to each package in the Package Destination Location on Package Servers field!
If you do not specify a sub-folder, or use the same folder for more than one package, this can create a dangerous situation that could remove the entire destination folder and its contents. It is absolutely imperative that you configure an appropriate sub-folder when performing this task; otherwise the contents of your entire share could be deleted when the package is deleted!
When a package is removed (either by it becoming invalid or by manually clearing the Package Destination Location on Package Servers field) then the entire folder that the package resides in will be deleted, including any other files originally located there that were not part of the package.
Remember, ensure you specify a folder for each package in the Package Destination Location on Package Servers field!
Securing the Package Location
This section shows you how to:
- Secure the package location
- Allow anonymous access to package locations
- Disable location security
The Agent Connectivity Credentials (ACC), in the Global Altiris Agent Settings page, are used by the Package Server to add file-based security to download package files, if so configured.
Note: The Agent Connectivity Credentials used must be a known account on the Notification Server and every Package Server.
To secure files in packages on the Notification Server and Package Servers configure Windows NTFS file permissions. If the user account can’t be validated on a Package Server (for example, non-trusting domain or computer account from another computer), Altiris agents won’t download files from this Package Server.
Using a domain account as the ACC will work if the Altiris agents, Package Servers, and Notification Server exist in the same domain, or a trust exists between the multiple domains in your environment.
If your environment contains multiple domains and no trust exists between these domains, when you specify an ACC, enter a local user account name and not a domain account user name and password. The format for entering the local user account name as the ACC is one of the following:
- .\localuser
- localuser (where localuser is the name of the local computer account)
If you specify a local account as the ACC, we recommend you enable the Create the Agent Connectivity Credential on Package Servers option on the Settings tab of the Package Server page (provided the ACC is not a Domain Controller). This ensures a local account will be created and applied to the downloaded package files on all Package Servers, if it doesn’t already exist on all Package Server computers, on all trusted and non-trusted domains.
The Altiris Agents can use this local account to connect to Package Servers across nontrusted domains when downloading files.
If you specify a local account and the Create the Agent Connectivity Credential on Package Servers. (provided the ACC is not a Domain Controller) option is disabled, the local account needs to already exist on every Package Server. If not, the Package Server can’t apply security to downloaded packages and will not publish codebases as ready to the Notification Server.
Creating the Agent Connectivity Credential on Package Servers
- In the Altiris Console, select the Configuration tab.
- In the left pane, navigate to Configuration > Server Settings > Notification Server Infrastructure > Package Servers.
- In the right pane, click the Settings tab.
- Select Create the Agent Connectivity Credential on Package Servers (provided the ACC is not a domain account). Selecting this option allows you to enable the following:
- Re-enable the created local account if it has been locked out.
- Create the ACC even if the Package Server is also a Domain Controller.
Allow anonymous access to package locations
You can enable all packages downloaded to Package Servers to have anonymous access applied to the directories containing the package files. Anonymous access will also be enabled for the directory security inside IIS for the hosted Package Server packages.
If this feature is disabled the Agent Connectivity Credentials on the Global Altiris Agent Settings page will be used when applying security to the Package Server files. Any HTTP virtual directories mapped to packages on the Package Server will then have Integrated Windows authentication enabled.
All authenticated users are allowed to download through UNC when anonymous access is enabled. For example, if a Package Server in a non-trusted domain has anonymous access enabled on its files and the ACC account the Altiris Agent uses to connect anonymously to the UNC source cannot be authenticated, access with be denied and no download will occur. However, you can download through HTTP from a Package Server, in a non-trusted domain, using anonymous access because the ACC account doesn’t need to be authenticated.
New Registry key for disabling Package Server directory security
A new Package Server registry key, EnableDACLManagement, has been created to allow you to change how a Package Server manages the security on its packages.
By default, a Package Server manages its packages by setting specific permissions on package directories; this includes overriding any custom permissions you may have set on the directories. When this registry key is activated, Package Server will no longer override existing permissions on package directories.
Take care when using this key as incorrect permissions could potentially render the Package Server directories inaccessible to the Package Server and Altiris Agents.
To ensure a fully functional Package Server, full control for Local Administrator and System need to exist on all package directories in addition to any other custom permissions.
Normally, Altiris Agents and other Package Servers access the packages located on the Package Server computer using the Agent Connectivity Credential (ACC), configured on the Notification Server. To ensure they continue to download packages, configure the Everyone or ACC account with read and execute privileges on the package directories. This is required because when the key is activated, Package Server is instructed not to manage permissions, which includes not applying the ACC or Everyone account to the downloaded packages.
Creating the Registry Key
As the registry key does not exist on a default install of the updated Package Server, create the DWORD key, 'EnableDACLManagement' under the following location in the registry—HKEY_LOCAL_MACHINE\SOFTWARE\Altiris\Altiris Agent\Package Server. Before creating the key, stop the Altiris Agent Service and restart when finished.
The registry key can have one of the following settings:
- 0—Ensures that Package Server will not change existing security on package directories.
- 1—Will cause Package Server to function as normal by applying and resetting permissions on package directories.
03 January 2009
Altiris Deployment Solution 6.9 SP1 MP1 (Maintenance Pack 1)
What issues have been fixed in Altiris Deployment Solution 6.9 SP1 MP1 (Maintenance Pack 1)?
Resolution
The DS 6.9 SP1 MP1 (Maintenance Pack 1) addresses the component issues noted below:
Altiris Client Service (AClient.exe)
The current build of AClient is 6.9.366. It is a cumulative build that includes fixes from all previous builds.
| Description | Fixed in Build | Article ID |
| AClient JPN, FRN, DEU, and CHS localization issue. | 6.9.359 | 44291 |
Altiris eXpress Server (AXengine.exe)
The current build of AXengine is 6.9.365. It is a cumulative build that includes fixes from all previous builds.
| Description | Fixed in Build | Article ID |
| MMB S3 Bladeservers not listed in Deployment Solution console | 6.9.361 | 44804 |
ASDK for DS
The current build of the ASDK for DS is 6.9.365. It is a cumulative build that includes fixes from all previous builds.
| Description | Fixed in Build | Article ID |
| DNS settings are not reflected on the console using a programmatically created Reconfigure job | 6.9.361 | 44455 |
| Authentication failing using ASDK methods like DeleteComputer() after installing DS 6.9 SP1 | 6.9.363 | 44253 |
| ''Task_Return_Codes_Table'' dataset is ignored in API calls | 6.9.364 | 41438 |
| CreateJob error in Administrator SDK 1.4, "Error Value cannot be null" when job have Condition set | 6.9.364 | 40878 |
| "Value cannot be null..." when DS security is disabled and code does not include DSCredentialsHeaderValue. | 6.9.365 | 44650 |
| Method failed. Exception: Permission Denied: Deployment Server Role-Based Security is enabled. | 6.9.365 | 44649 |
Boot Disk Creator (bootwiz.exe)
The current build of the boot disk creator is 6.9.365. It is a cumulative build that includes fixes from all previous builds.
| Description | Fixed in Build | Article ID |
| Boot Disk Creator unable to add drivers to WinPE using the Have Disk button | 6.9.357 | 44108 |
DAgent
The current build of the DAgent Default Component is 6.9.366. It is a cumulative build that includes fixes from all previous builds.
| Description | Fixed in Build | Article ID |
| Copy File task using UNC path fails with “The network path was not found.” | 6.9.356 | 44031 |
| DAgent does not retain WINS IP address after post config | 6.9.361 | 44811 |
| Duplicate SPN error when user tries to login to the machine with domain user | 6.9.361 | 44807 |
| DAgent in WinPE occasionally fails to connect to Deployment Server | 6.9.366 | 44898 |
| DAgent can hang if an exception is thrown during startup | 6.9.366 | 44899 |
Data Manager
The current build of Data Manager is 6.9.365. It is a cumulative build that includes fixes from all previous builds.
| Description | Fixed in Build | Article ID |
| Exception may be thrown in Axengine if the Web Console is installed | 6.9.361 | 44109 |
Deployment Server Console (eXpress.exe)
The current build of the Deployment Server Console is 6.9.365. It is a cumulative build that includes fixes from all previous builds.
| Description | Fixed in Build | Article ID |
| Cannot schedule jobs using Active Directory group authentication. | 6.9.361 | 44235 |
| Error "##wc_last_effective_rights" is displayed when multiple consoles are open | 6.9.361 | 44220 |
PXE
The current build of PXE is 6.9.365. It is a cumulative build that includes fixes from all previous builds.
| Description | Fixed in Build | Article ID |
| PXE Server fails to send path to pxeboot.bdc when clients boot to WinPE causing ‘Windows failed to start’ error | 6.9.362 | 44281 |
To apply the maintenance pack do the following:
1) Download the maintenance pack and save to a directory on the Deployment Server.
2) Execute the file and follow the prompts.
Notes:
- All affected files are backed up. An uninstall is added to Add/Remove programs in the Control Panel.
- Fixes are applied for installed components ONLY. If, for example, the ASDK is not installed, the ASDK fix will not be applied. If the ASDK is installed later simply rerun the maintenance pack and the file(s) will be updated.
- The maintenance pack can be installed silently by using the /S switch.
- In order for the maintenance pack to resolve the PXE and Webconsole issues documented above it is necessary to run the maintenance pack on all remote PXE/Webconsole servers.
This can be done by following the steps below:
1) Install Aclient/Dagent on all remote PXE/Webconsole servers
2) Create a Distribute Software job. Use "DS_69_SP1_MP1.exe" with the /S switch.
3) Assign the job to the remote PXE/Webconsole servers
4) The maintenance pack will update the remote PXE/Webconsole servers
5) Remove Aclient/Dagent on all remote PXE/Webconsole) server
23 December 2008
Patch Management Upgrade Validator
This tool examines the Notification Server database to determine if are any issues that require addressing before an upgrade can occur. In "Analyze" mode, the tool makes no attempt to remediate issues and makes no modifications to the database.
The tool restricts its reporting to the internal state of the Notification Server and Patch Management solution. The results do not contain any information identifying vulnerabilities in individual machines or groups of machines.
Download the latest Validator tool HERE.
It's safe for PM 6.1 and 6.2 to be used and fix any reported errors
22 December 2008
How to view codebases returned to the Altiris Agent through getpackageinfo.aspx request
Answer
When the Altiris Agent is required to download a package it will request the appropriate codebases from the Notification Server through getpackageinfo.aspx. The information returned from getpackageinfo.aspx is ultimately stored as the package.xml on the client computer under 'Program Files\Altiris\Altiris Agent\Software Delivery\<package GUID>'.
For example, a client computer will show the following in the logs during the getpackageinfo.aspx request (when trace logging is enabled on the client computer):
Date: Nov 08 14:23:41:011
Source: AeXNetworkTransport
Description: GET:
url=http://ns-03/Altiris/NS/Agent/GetPackageInfo.aspx?xml=<request resource="{89782D60-FFA1-487A-B4BA-38E909ABB6DF}" version="1" type="codebases" compress="1" totalTime="0">
<packages>
<package guid="{8661D7F2-039B-4418-9A0A-70A9C7445F9C}"/>
</packages>
<addresses>
<address ip="192.168.0.104"/>
</addresses>
</request>The IIS logs on the server record the following:
2005-11-08 21:23:41 192.168.0.104 GET /Altiris/NS/Agent/GetPackageInfo.aspx xml=%3Crequest%20resource=%22%7B89782D60-FFA1-487A-B4BA-38E909ABB6DF%7D%22%20version=%221%22%20type=%22codebases%22%20compress=%221%22%20totalTime=%220%22%3E%0A%3Cpackages%3E%0A%09%3Cpackage%20guid=%22%7B8661D7F2-039B-4418-9A0A-70A9C7445F9C%7D%22%2F%3E%0A%3C%2Fpackages%3E%0A%3Caddresses%3E%0A%09%3Caddress%20ip=%22192.168.0.104%22%2F%3E%0A%3C%2Faddresses%3E%0A%3C%2Frequest%3E%0A 80 - 192.168.0.104 - 200 0 0To view the codebases in your browser, take the IIS log entry and make the following changes:
- Replace the space between getpackageinfo.aspx and XML with a question mark.
- Remove the section referring to compress=%221%22 (highlighted in red below).
- Complete the URL by adding 'http://server_name' at the beginning of the line.
Before:
/Altiris/NS/Agent/GetPackageInfo.aspx xml=%3Crequest%20resource=%22%7B89782D60-FFA1-487A-B4BA-38E909ABB6DF%7D%22%20version=%221%22%20type=%22codebases%22%20compress=%221%22%20totalTime=%220%22%3E%0A%3Cpackages%3E%0A%09%3Cpackage%20guid=%22%7B8661D7F2-039B-4418-9A0A-70A9C7445F9C%7D%22%2F%3E%0A%3C%2Fpackages%3E%0A%3Caddresses%3E%0A%09%3Caddress%20ip=%22192.168.0.104%22%2F%3E%0A%3C%2Faddresses%3E%0A%3C%2Frequest%3E%0AAfter:
http://server_name/Altiris/NS/Agent/GetPackageInfo.aspx?xml=%3Crequest%20resource=%22%7B89782D60-FFA1-487A-B4BA-38E909ABB6DF%7D%22%20version=%221%22%20type=%22codebases%22%20%20totalTime=%220%22%3E%0A%3Cpackages%3E%0A%09%3Cpackage%20guid=%22%7B8661D7F2-039B-4418-9A0A-70A9C7445F9C%7D%22%2F%3E%0A%3C%2Fpackages%3E%0A%3Caddresses%3E%0A%09%3Caddress%20ip=%22192.168.0.104%22%2F%3E%0A%3C%2Faddresses%3E%0A%3C%2Frequest%3E%0AAnother solution from AKB#1070 (modify IP address and Package Guid as needed):
http://<notification server>/ALTIRIS/NS/Agent/GetPackageInfo.aspx?xml=<request resource="{1675E076-73CA-4CDD-BAD8-7130435F447E}" version="1" type="codebases"><packages><package guid="{01B54EB5-3679-4C73-9E10-E169D5A5EC59}"/></packages><addresses><address ip="10.50.104.82"/></addresses></request>21 December 2008
DAgent synchronizes the system clock when the option is not enabled
Problem/Symptoms
Even when the option to synchronize time with the Deployment Server is not checked, the DAgent will still synchronize time with the Deployment Server.
In WinPE 2.1 automation, the DAgent sets the hardware clock to a time that is not synchronized with the Deployment Server.
Cause
The cause is currently being investigated by Symantec
Resolution
A resolution is currently being investigated. A possible workaround until this is resolved is to use AClient instead of DAgent.
16 December 2008
How to preform a hard disk wipe using the Ghost utility called GDisk.
When reallocating hardware from one person to another, it is often important to ensure that none of the old data from the hard disk can be retrieved, even after deploying a new imaging to the computer.
The GDisk utility (one of the Ghost tools shipped with Deployment Solution 6.9 SP1) is a multipurpose disk management utility that includes a secure disk wiping feature. GDisk’s secure disk wiping feature wipes data according to the U.S. Department of Defense (DoD) 5220.22-M standard. According to this standard, the following group of operations is performed six times:
• All addressable locations on the hard disk are overwritten with 0x35.
• All addressable locations on the hard disk are overwritten with 0xCA.
• All addressable locations on the hard disk are overwritten with a pseudorandom character.
• All addressable locations on the hard disk are verified in hardware using the Verify Sectors command to the disk.
Running GDisk to Securely Wipe a Disk
GDisk can be run from a DOS (GDisk.exe), WinPE (GDisk32.exe or GDisk64.exe), or Linux (Gdisk) pre-boot operating system using the following syntax:
gdisk disk /diskwipe /dodwipe
The following table explains the GDisk command-line elements.
| Element | Description |
| gdisk | The Gdisk executable used, such as GDisk.exe (for DOS) or GDisk32.exe (for WinPE). |
| disk | The physical disk to be wiped. Replace disk with a number between 1 and 128. |
| /diskwipe | Instructs GDisk to perform a disk wipe. |
| /dodwipe | Instructs GDisk to perform the required wipes meeting the DoD standards. |
Example: gdisk.exe 1 /diskwipe /dodwipe
This command runs the DOS version of GDisk and wipes the first drive using the DoD standards.
Sample Symantec wipe disk jobs ships with Deployment Solution and can be found in the Samples job folder.
How to discover missing drivers for DeployAnywhere.
To determine if your DeployAnywhere database has the drivers needed for a particular computer, start the computer in question using WinPE and run the following DeployAnywhere command:
ghdplyAw32.exe /target=c:\Windows /ddb=DriversDB /eval
If a mass storage or NIC driver is missing, a list of the missing drivers is displayed on the screen and are also stored in a text file named ghDplyAw.txt.
This discovery process can be automated using a Deployment Run Script task (configured for WinPE) using the following in a Deployment Run Script task:
cd \Ghost
ghdplyAw32.exe /target=c:\Windows /ddb=\DriversDB /eval
Important: The previous task only works if the SmeUtil.sys driver is in the \Windows\System32\Drivers folder of WinPE. This driver is found in the Ghost folder in your Deployment Share. It can be added to the WinPE automation during the creation or editing process by right-clicking the Drivers folder and selecting
Add File.
As an alternative, the SmeUtil.sys driver can be copied by adding the following command to your run script task:
Copy %ALTIRIS_SHARE%\Ghost\SmeUtil.sys %SystemRoot%\
System32\Drivers
Download Snapshot failed: HTTP error: 404 Not Found (-2147209951) when attempting to download packages
Problem/Symptoms
When attempting to download a package through an IIS-enabled Package server, the following error messages are seen in the Altiris Logs:
Priority: 1
Date: 9/18/2008 2:03:18 PM
Tick Count: 26759250
Host Name: ------
Process: AeXNSAgent.exe (4744)
Thread ID: 1648
Module: AexPackageDelivery.dll
Source: PackageDownload
Description: Download Snapshot failed: HTTP error: 404 Not Found (-2147209951)
and
Priority: 1
Date: 9/18/2008 2:03:18 PM
Tick Count: 26759250
Host Name: ------
Process: AeXNSAgent.exe (4744)
Thread ID: 1648
Module: AexPackageDelivery.dll
Source: PackageDelivery
Description: Error while downloading package: HTTP error: 404 Not Found (-2147209951)
Environment
Notification Server 6.0 SP3 R7
IIS-enabled Package Server
Cause
In This case, the client computers were unable to generate their package snapshots becuase Active Server Pages were not enabled in IIS on the package server.
Resolution
To resolve this, we:
1) Checked the snapshot file in the GUID Folder on the Client and found that it was unable to generate a snapshot.
2) We checked the IIS logs on the Package Server, and found that the client was receiving 404 errors when it was attempting to generate its snapshot.
3) We Enabled Active Server Pages in the IIS Manager on the Package Server, and the client was then able to generate its snapshots. This is found in the IIS Manager under 'Web Service Extensions' in the main menu tree.
12 December 2008
Altiris licensing technical FAQ
Applies To
• Inventory for Windows 6.0, 6.1
• Notification Server 6.0
• Patch Management 6.1, 6.2
• Software Delivery
Question
How does Altiris licensing work for Notification Server based products?
Answer
Overview
This article discusses licensing for each of the Altiris Notification Server based solutions:
- How a license is consumed.
- What happens when the license count is exceeded.
- What happens when a time limited (demo/install) license expires.
- What happens when the Automatic Upgrade Protection (AUP) expires.
- How to recover a solution license (retirement vs. deletion).
- Anomalies in expected functionality.
Inventory Solution for Windows
- License consumption—A license is consumed after the Notification Server has received the first posted software inventory data from a managed computer. A license is not consumed from the existence of the inventory solution agent on a managed computer. A license is not consumed by the "basic inventory" function of the Altiris Agent.
- License count exceeded—Inventory from licensed nodes will continue to be processed. Incoming inventory data from unlicensed nodes is discarded.
- License expiration (only applicable to Trial or otherwise temporary licenses)—Agent rollouts will still occur without a problem. All new incoming inventory data is discarded. Inventory reports will throw a license error.
- AUP expiration—All functions will continue normally. However, if newer versions of the solution are installed, they will not function.
- License recovery—As of Inventory Solution 6.1 SP2, setting the status of the computer to anything but Active will release a license. In prior versions, only Retired, Return to Lessor, and Disposed computers will free up a license. Deletion of the computer resource record will also release a license.
NOTE: Inventory Solution specific data on Retired, Return to Lessor and Disposed computers will be purged as part of a background process that runs each night.
Software Delivery Solution for Windows
- License consumption—A license is consumed the first time a managed computer requests a software delivery task. The prerequisites for this event would be the assignment (via the Notification Server console) of a software delivery task to a managed node that has the Software Delivery Solution agent installed. A license is not consumed from the existence of the Software Delivery Solution agent and/or the Task Synchronization agent on a managed computer.
- License count exceeded—All agents that attempt to obtain Software Delivery Tasks beyond the allowed node count will stop receiving the task details in their client policy files.
- License expiration (only applicable to Trial or otherwise temporary licenses)—Agent rollouts will still occur without a problem. Software Delivery jobs will be no longer be advertised to clients, including newer schedules for existing tasks.
- AUP expiration—All functions will continue normally. However, if newer versions of the solution are installed, they will not function.
- License recovery—Retired computers will not release a license.
- Computers can be deleted to release a license
- For unmanaged computers, the event deletion in Data Purging for Software Delivery can be used to clear out old records and free up licenses. This will not work for systems actively using Software Delivery Solution.
Patch Management Solution for Windows
- License consumption—A license is reserved the first time a managed node posts the results of an inventory rule scan to the Notification Server or requests a software update package. A license is not consumed from the existence of the Software Update, Inventory Rule, and/or the Package agent on a managed computer.
- License count exceeded—All agents will stop receiving new software update policies. The Notification Server will refuse to download new (the pmimport.cab file) patch management data from the Altiris Web site. Newly posted Inventory Rule scanning data will be silently discarded by the Notification Server.
- License expiration (only applicable to Trial or otherwise temporary licenses)—Software Update Agent rollouts will still occur without a problem. Inventory Rule scanning and Software update tasks will be no longer be advertised to clients, including newer schedules for existing tasks. The Notification Server will refuse to download new (the pmimport.cab file) Patch Management data from the Altiris Web site.
- AUP expiration—Pre-existing software bulletins will be available for enablement and deployment of their related software updates. The Notification Server will no longer be able to download updated versions of the PMImport.cab file. Software update policies and inventory rule scans will continue to function. However, it will not be possible to obtain updates for new bulletins and their corresponding inventory rules due to the inability to update the pmimport.cab. If a newer version of the solution is installed, it will not function.
- License recovery—Retired computers will not release a license. Computers must be deleted to release a license.
Notification Server 6.0 SP3 R9 Release Notes
Release Notes for Altiris® Notification Server™ 6.0 SP3 R9
Installation and Configuration
Installation and Configuration
Rollup 9 (R9) for Notification Server 6.0 is a rollup of fixes to the core product since the release of Service Pack 3. It includes R1 (KB22690), R2 (KB23784), R3 (KB25133), R4 (KB27859), R5 (KB31946), R6 (KB34317), R7(KB35803), and R8(KB39159)
Note: We do not recommend uninstalling R9 as it contains essential fixes. If you experience problems after the installation, please contact Altiris Support Services at www.altiris.com/Support.
Prerequisite Software
Notification Server 6.0 SP3 (build 6.0.6074)
Installing Rollup 9 (R9) for Notification Server 6.0 SP3
Download Altiris_NS_6_0_SP3_KB39160.exe from the following location:
http://www.solutionsam.com/solutions/6_0/Altiris_NS_6_0_SP3_KB39160.exe
Run Altiris_NS_6_0_SP3_39160.exe on the Notification Server.
Note: R9 includes an updated version of the Altiris Agent. After installing R9 onto the Notification Server, the Altiris Agent package will be updated. The upgrade policy is located in the Configuration tab of the Altiris Console under Configuration > Altiris Agent > Altiris Agent Rollout.
Fixes in this Release
The following issues were resolved in this release. For additional information regarding a fixed issue, click on the Article ID link.
Fixed Issues
https://kb.altiris.com/article.asp?article=39160&p=1
Known Issues
- If Helpdesk Solution is installed on the Notification Server, install R9, then go to KB43862 and follow the additional steps in the resolution section of that article.
- If IT Analytics is installed on the same computer as the Notification Server, wait to install R9 until after a new release of IT Analytics. R9 causes the current version of IT Analytics to stop working correctly. See article 40366.
- "PackageDownload Download Snapshot failed: Failed to create NS Client component. Error number: 46. Error description: Permission denied". See article 1751 for the workaround.
09 December 2008
If a Package is deleted on the server and clients still have the packages, the events generated from the packages will cause ItemNotFoundException errors.
Question
If a Package is deleted on the Notification Server and clients still have the packages, the events generated from the packages will cause ItemNotFoundException errors.
Answer
The default setting for deletion for all SWD packages on the local client machine is 7 days. If the Package is deleted on the server and clients still have the packages, the events generated from the packages will cause ItemNotFoundException errors.
The 7 days begins from the time the client no longer sees the package in the Client Configuration XML sent from the server.
As such, this is the best practices for retiring/deleting packages:
1. Disable all tasks associated with the package (if a task is enabled, and a client has that task, the 7 days will not start until that task is gone or removed).
2. Tasks can be deleted very quickly since an updated Client policy XML will stop any events for that task from being generated.
3. 7 days after the tasks were disabled/deleted, delete the package.
07 December 2008
How to use Ghost 'Hot Imaging' to create images while the computer is running
Question
How do you use Ghost "Hot Imaging" to create an image while the computer is running?
Hot imaging is the ability to create an image of a computer while the computer is running the production operating system. For example, with Ghost hot imaging, you can create an image of Windows XP while you are logged on and using Windows XP.
While the image is being created, you can continue to work in the production operating system, but any file changes made after the imaging process is started, will not be captured in the image.
Answer
Hot images are created by running Ghost in the production operating system. This can be accomplished from a command prompt or from a Deployment Server Run Script task.
(Important: When using the hot imaging feature of Ghost, you cannot save the image being created to the same partition that is being captured in the image. Hot Imaging has been disabled for all Server operating systems.)
Sample Deployment Run Script Task:
REM Map a drive
net use z: \\Provo\express
REM Run Ghost to capture image
Z:\Ghost\Ghost32.exe -clone,MODE=create,SRC=1,DST=Z:%COMPNAME%.gho -sure
Important: The only spaces in the preceding script are located before a dash. Do not put spaces after the commas.
The following information explains the command-line switches used in the sample script:
| Command or Switch | Description |
| Z:\Ghost\Ghost32.exe | The path and name of the Ghost program being used. |
| -clone, MODE=create,SRC=1, | Create an image of drive 1. |
| DST=Z: COMPNAME%.gho | Create the image on the Z: drive. The variable of %COMPNAME% will be replaced with the name of the computer being imaged. The path used to store the image cannot be the same partition that is being captured. |
| -sure | Eliminates the need to manually confirm the creation of the image. |
(Important: Configure the task to run in the production environment using the Security Context of either Specific user or Run script in console user session. The account used, must have rights to create the image on the destination server.)
21 November 2008
Deployment Solution 6.9 SP1 uncompressed WinPE preboot images
Question
What do I need to know about using uncompressed WinPE preboot images in Deployment Solution™ 6.9 SP1?
Answer
In some cases, choosing the option in the Boot Disk Creator to create an uncompressed WinPE preboot image produces a preboot image that does not connect to the Deployment server and does not perform jobs.
The default option is to create a compressed WinPE preboot image. You must explicitly select that you want to create an uncompressed WinPE boot image. If you manually changed this option to produce an uncompressed image and if that image boots into WinPE but does not connect or respond to the Deployment server, use the compressed option instead.
When upgrading to DS6.9SP1 then check if the compression is selected when (re)creating the WINPE. Maybe it would be a good idea to recreate you (old) WINPE boot file.
Thx David and Stephane
18 November 2008
Fix Available: Cannot schedule jobs using Active Directory group authentication on Deployment Solution 6.9 SP1
Problem/Symptoms
Active Directory (AD) users that are imported into the Deployment Server database via Active Directory Groups do not have rights to schedule jobs.
Steps to reproduce:
- Add an AD group to Deployment Solution. Assign the group the 'Administrator' right to the console.
- Do not add the specific AD user.
- Login as a user that from the AD Group.
- Attempt to schedule a job.
- The right to schedule a job is not available.
Note: If the 'Evaluate Rights' button is viewed the rights for the specific AD group will evaluate successfully (as though they have the rights).
Resolution
Symantec has created a hotfix to resolve this issue. Follow the steps below to install the fix:
1) Shutdown all Deployment Server consoles.
2) Stop the 'Altiris Express Server' service.
3) In the Deployment Server directory (E.g. C:\Program Files\Altiris\eXpress\Deployment Server) rename express.exe to express.lic.
4) Download the updated 'Express.exe' to the the Deployment Server directory.
5) Open the 'Product Licensing Utility' and use 'express.lic' from the Deployment Server directory to license the new express.exe file.
6) Start the 'Altiris Express Server' service.
Note: The express.exe included in this KB is the same express.exe used in KB 44220.
01 November 2008
Deployment Solution 6.9 SP1 supported platforms and system requirements
Question
What platforms are supported by Deployment Solution 6.9 SP1?
More info on the supported platforms can be found here
14 October 2008
DS 6.9 SP1 features
Introduction
Deployment Solution 6.9 SP1 software helps reduce the cost of deploying and managing servers, desktops, notebooks, and thin clients from a centralized location in your environment. It's an easy-to-use, automated deployment solution that offers OS deployment, configuration, PC personality migration, and software deployment across different hardware platforms and OS types. In SP1, we added support for Microsoft Windows Vista and Windows Server 2008, including running 32-bit applications on 64-bit platforms (WoW support).
The following are features of this release BUT still in BETA so not confirmed:
- Enhanced Vista 2008 management
- Updated WinPE installers
- Added that Deployment Solution now runs on Windows 2008 servers
- Added support for 64-bit servers (Wow 64)
- Added support for disabling and enabling NICs (network interface card)
- Added SQL 2008 support
- Added that DAgent now supports remote control
- Added that DAgent is now the default agent for Windows clients
- Added support for UNC imaging
- Added a sample job for upgrading AClient to DAgent
- Enhanced rip and replace to specify the jobs that are replayed
- Enhanced user rights
- View only the computers and jobs that you have the rights to manage
- Limit access to master return codes
13 October 2008
How to check the status (active, retired , etc) of a machine?
1. You change/view the status of a computer under Altiris Console, click the Resources tab > Resources > Defaults.
2. Import the attached report into the reports tab or create your own using SQL like the following. that can help to identify retired machines.
Run it against Altiris database. ( replace 'retired' to the status you want to check).
SELECT i1.Name AS Asset, rt.Name AS [resource type], i2.Name AS
Status, i1.Guid
FROM ResourceAssociation ra INNER JOIN
Item i1 ON i1.Guid = ra.ParentResourceGuid INNER
JOIN
Item i2 ON i2.Guid = ra.ChildResourceGuid INNER
JOIN
ItemResource ir ON ra.ParentResourceGuid = ir.Guid
INNER JOIN
ResourceType rt ON rt.Guid = ir.ResourceTypeGuid
WHERE (ra.ResourceAssociationTypeGuid =
'3028166F-C0D6-41D8-9CB7-F64852E0FD01') AND (i2.Name LIKE 'retired')
Subscribe to:
Posts (Atom)
